SunPump - Touch Screen Controller SP3.0
This advanced Controller applies to 2016 SP3.0 and 2017 SP3.1 models.
If you controller does not have the Lock button or the 5 round Mode icons, go to SP2.3 Controller.

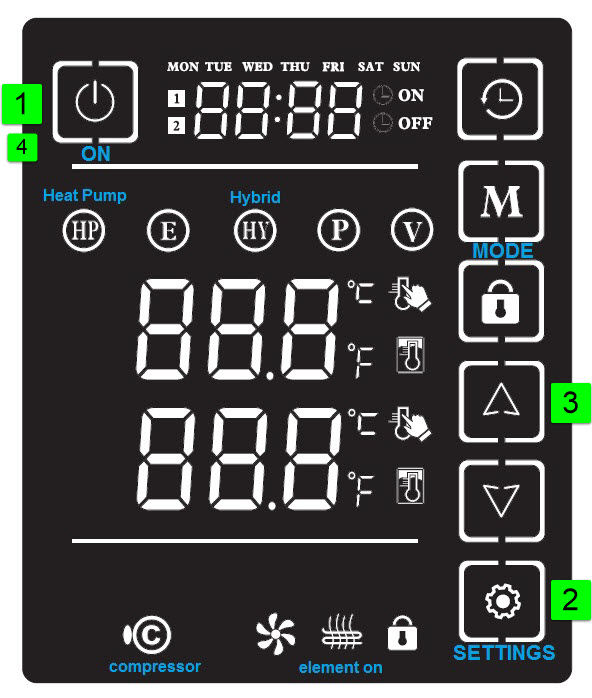

1, PARAMETERS - Simple as 1-2-3-4
To open Parameters using the SunPump Controller:touch screen display.
- ON - clicked
- SETTINGS - clicked
- ARROW UP - to scroll when both top and bottom values are flashing
- SETTINGS button to change the Value to Blink - then ARROW UP/DOWN to select
- ON - clicked to save and exit
IMPORTANT - Changes cannot be made when the Lock Icon is shown at bottom right
Use this form on your phone, tablet, or laptop to enter the Parameter and Data Values.
https://www.sunpump.solar/form-view/19

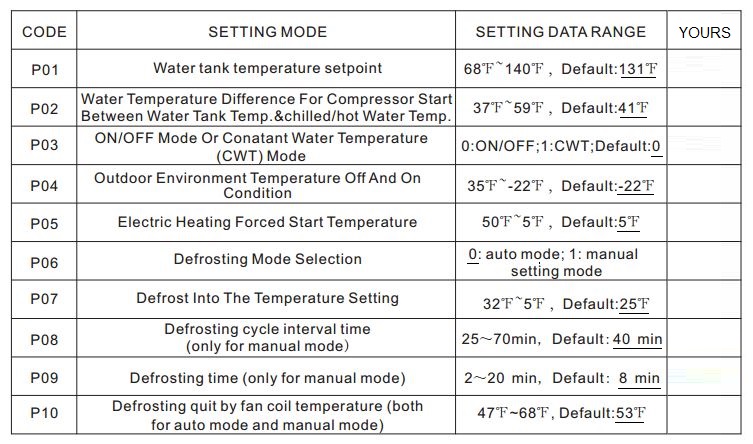

Parameters Table
If You are asked to share your Parameters and Data in a Ticket, you can use a simple text line, like this. (copy)
P1= | P2= | P3= | P4= | P5= | P6= | P7= | P8= | P9= | P10=
a1= | a2= \ a3= | a4= | a5= | a6= | a7= | a8=
Video - Open the Parameters in Controller
Here are four short videos to demonstrate changing settings in the SP3.0 Controller. (it is nearly identical for SP2.3)
It shows you on your phone or web browser clips on changing MODE, removing Lock, other MODE options, and seeing the Parameters list
https://goo.gl/photos/TMK2Y72fSLZkj1Ft8

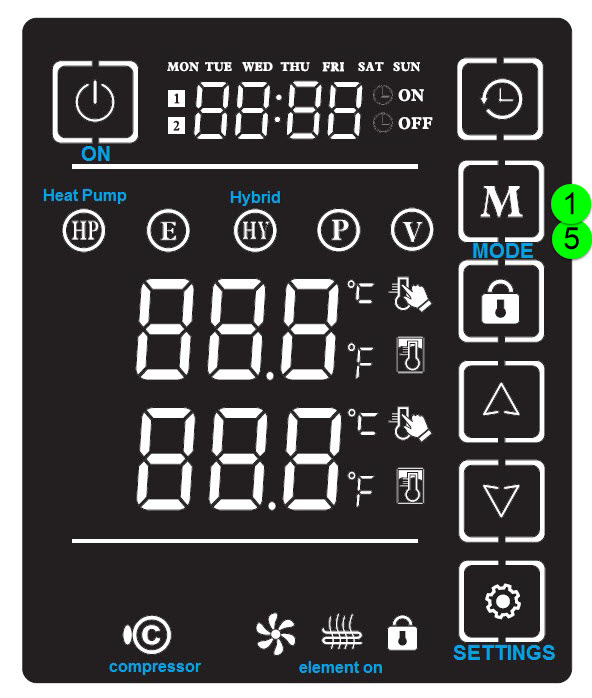

2, MODE - Simple as 1 Repeated 5 Times
MODE - Click to change Modes. ON to save and exit
- HP = Heat Pump (default)
- E = Electric
- HY = HYbrid
- P = Powerful
- V = Vacation
Here are four short videos to demonstrate changing settings in the SP3.0 Controller. (it is nearly identical for SP2.3)
It shows you on your phone or web browser clips on changing MODE, removing Lock, other MODE options, and seeing the Parameters list
https://goo.gl/photos/TMK2Y72fSLZkj1Ft8
Download the PDF below for the full Controller details.
Learn how to add/remove Lock, change from F. to C., set the date and more.
